MDR (Music Disk Recorder) Electone disk drive
The MDR was produced to solve the problem of not being able to record a performance on a RAM Pack,
and because of the high price of the RAM Packs. It is able to store 16-40 files (depend on model).
Each file can contain Registrations, user voice data, panel settings, current registration (which may not
be saved in the Reg. Mem) global settings, and a performance (even in parts - upper/lower/pedal/etc.).
This device is a "must have" for any Electone owner who wants to save his registrations and
performances shortly - all of us. The MDR needs to be connected via both MIDI ports (it has
MIDI through for connection of other modules) and no line connection. All data transmission
with the MDR is done via MIDI.
MDR-2
This one was the only one with a remote control - nice gig...
If anyone has more pics of that one - please send them to us.

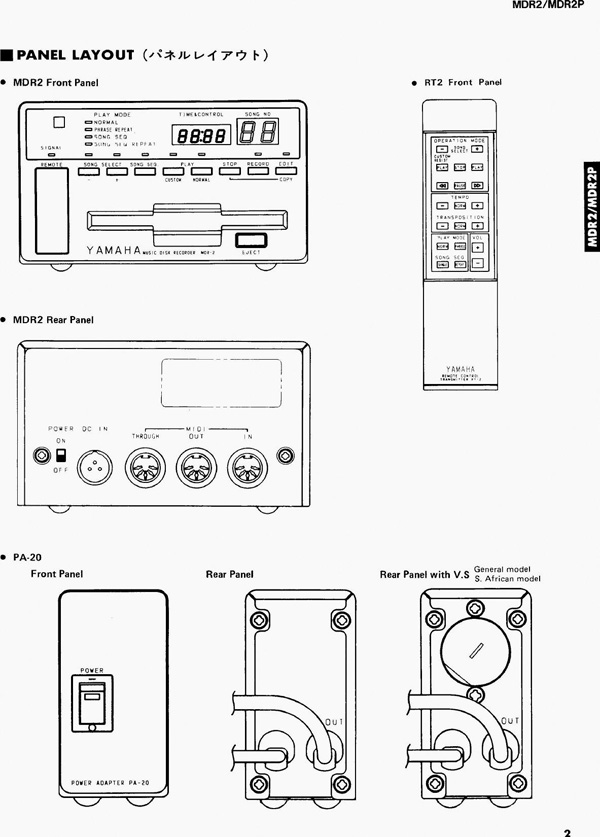

MDR-2 Pictures: (downloaded from the internet)
MDR-3:
Looks like the MDR-4 but still reads DD disks, and up to 16 titles (pair of R00 & EVT files).
MDR-3 Pictures: (No pictures yet)
MDR-3 specifications table:
| Play/Record |
Upper, Lower, Pedal, Keyboard Percussion |
| Control |
Record/ Format, Song Select/ Tempo, Play/Custom
Play, Stop, Pause, Record Section: Upper/Song Repeat, Lower,
Pedal/Song Copy From, Control/Song Copy To. Play Section: Upper,
Lower, Pedal, Control/Song Del., Shift. |
| Data Storage |
3.5" microfloppy disks 2DD |
| Memory |
620 Kb (2DD), 16 song maximum |
| Dimensions (W/D/H)/ Weight |
135 x 200 x 63.5 mm (5-1/4" x 7-7/8"
x 2-1/2") 1.3 kg (2 lbs., 14 oz) |
MDR-4:
Top Of the line, reads HD disks and up to 40 titles (pair of B00 & EVT files) .
MDR-4 Pictures: (downloaded from the internet)
MDR-4 specifications table:
| Play/Record |
Upper, Lower, Pedal, Keyboard Percussion |
| Control |
Record/ Format, Song Select/ Tempo, Play/Custom
Play, Stop, Pause, Record Section: Upper/Song Repeat, Lower,
Pedal/Song Copy From, Control/Song Copy To. Play Section: Upper,
Lower, Pedal, Control/Song Del., Shift. |
| Data Storage |
3.5" microfloppy disks (2DD/ 2 HD) |
| Memory |
1240 Kb (2HD), 620 Kb (2DD), 40 song maximum |
| Dimensions (W/D/H)/ Weight |
135 x 200 x 63.5 mm (5-1/4" x 7-7/8"
x 2-1/2") 1.3 kg (2 lbs., 14 oz) |
MDR-10:
Well, this is a two part OEM version of the MDR-4. It is used in all upper range models of the EL
series. This model is not suited for the H family, and was designed to offer an upgrade to the medium
range ELs.

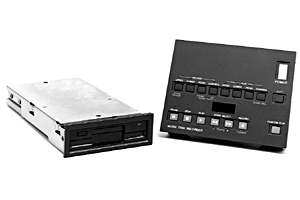

MDR-10 Pictures: (downloaded from the internet)
MDR-10 spesifications table:
| Play/Record |
Upper, Lower, Pedal, Lead, Keyboard Percussion |
| Control |
Pause, Stop, Song Select, Song Repeat, Song Delete,
Song Copy, From/To, Tempo, Shift, Format, Custom Play; Record
Section; Upper, Lower, PedalControl; Play Section: Upper, Lower,
Pedal, Control |
| Storage |
3.5" floppy disk (x1) Either double-sided
double density (2 DD) or double-sided high density (2HD) 3.5"
microfloppy disks can be used |
| Memory |
1,248 Kb (2HD), 626 Kb (2DD) |
| Dimensions W/D/H, Weight-Control Panel Unit |
155 x 115 x 32 mm (6-1/8" x 4-1/2" x
1-1/4") 269g (14 oz) |
| Dimensions W/D/H, Weight-Disk Drive Unit |
114 x 239 x 38 mm (4-1/2" x 9-7/16" x
1-1/2") 815 g (2 lbs., 10 oz) |
For more information please refer to the Yamaha manual library. (Yamaha Manual library)
|
|
|
|
Sincerely yours James Cohen Israel.
|
