FVX-1 - FM Voice eXpander (rack)

This rare voice expander was produced for getting additional FM sounds with small editing abilities.
It has the same tone generation abilities as the HX poly tone generator (8 operators for poly sound).
In contrast to the regular electone-connected expanders it wasn't designed to fit on/below the electone.
But to sit along with other racked devices on the rack mount and be played via MIDI.
But, as we all know, the acoustic samples sounds gained popularity very very fast, and for the same
price as the FVX-1 you could buy much realistic sounded instrument - so only few people bought it
and today it can be bought for around 500$ (US).

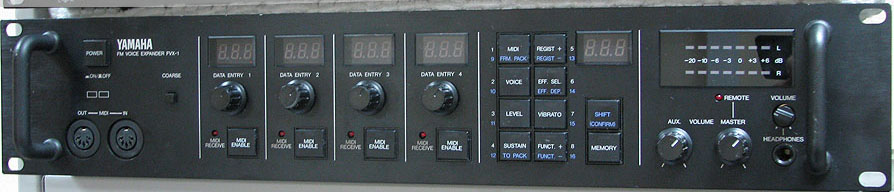

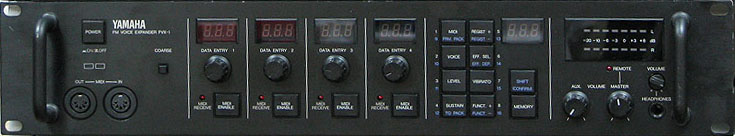

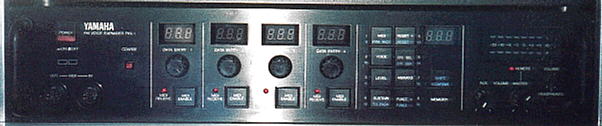

FVX-1 Pictures: (downloaded from the internet)



(Thanks to CKM)


(Thanks to CKM)


FVX-1 Brochure:
Download the German AVX-1/FVX-1 brochure


FVX-1 spesifications table:
Tone GeneratorFM Tone Generator (8 operators) 4 Tone groups/8-note polyphonic;
No. of VoicesMax. 504 voices
Tone Group Section
Switches Displays
DATA ENTRY x 4, MIDI ENABLE x 4
Tone Group Display x 4 , MIDI receive x 4
Common Section Switches



Displays
MIDI/FROM PACK, VOICE, LEVEL,SUSTAIN/TO PACK , REGIST +/-, EFF,SEL/EFF,DEP,Vibrato,Function +/-.SHIFT/CONFIRM,MEMORY,COARSE.
Common display.
Main Controls/OthersPOWER, Level Meter, MASTER VOLUME,REMOTE, Master AUX. VOLUME, HEADPHONES VOLUME.
Input/Output JacksHEADPHONES (phone), MIDI IN/OUT (front), MIDI IN/OUT/THRU (rear), PACK PORT, MAIN OUT L/R (pin), AUX. IN L/R (pin), MAIN OUT L/R (pin),MAIN OUT L/R (phone), AUX. OUT L/R (pin),AUX. OUT L/R (phone)
Dimentions(W x D x H)480 x 383.5 x 88mm
Weight7.2kg


For more information please refer to the Yamaha manual library. (Yamaha Manual library)

Sincerely yours James Cohen Israel.
