AVS-10 - AWM (Advanced Wave Memory) Voice eXpander
This voice expander was produced for obtaining additional AWM (sampled waves) sounds.
It is very easy to operate and considered a "must have" for HX (even system-1) electones.
One of the things that surprised me in the HX-1 is that you can't replace AWM voices/waves, and that
the AWM voice can be assigned either to the lower OR to the upper but not both - as can be done
with the HS-8. (Why isn't there any patch for this ???). It can be attached to any instrument via
MIDI, and connecting its "main out" jacks (big PL connectors) through an amplifier to an output source.

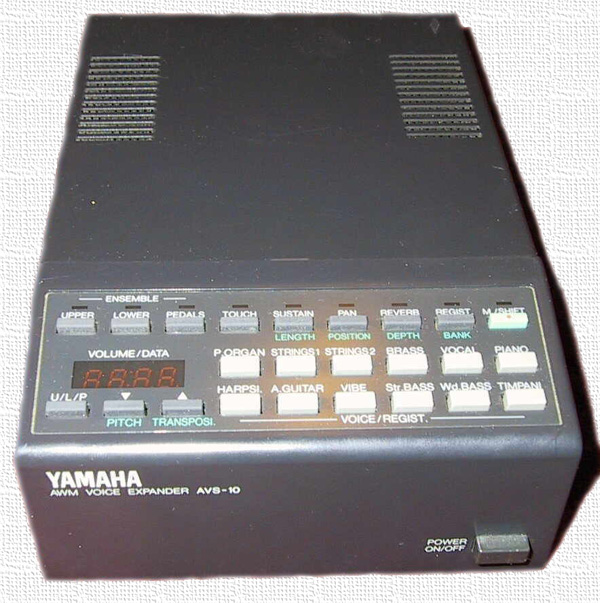

AVS-10 Pictures: (downloaded from the internet)
AVS-10 spesifications table:
| Tone generator | AWM (Advanced Wave Memory); Upper and lower (15-note polyphonic), pedals (monophonic) |
| Voices | P.Organ, Strings 1, Strings 2, Brass, Vocal Piano, Harpsi., A Guitar, Vibe, Str. Bass, Wd.Bass, Timpani |
| Ensamble | Upper,Lower,Pedals |
| Effects/Control | Volume: Upper/Lower/Pedals; Touch: On/Off Feeling; Sustain On/Off Length; Pan On/Off Position; Reverb On/Off Depth; Pitch; Transposition. |
| Registration Memory | 16 Memories x 4 Banks; |
| Other Controls | M./Shift, Power Switch, Stereo/Mono Switch, Impedance Switch (Hi: Electone; Low:Home Stereo) |
| Indicators | LED Display, Upper, Lower, Pedals, Touch, Sustain, Pan, Reverb, Regist., M./Shift |
| Input/Output Jacks | MIDI-1 (In,Out;for electone),MIDI-2 (In,Out), Aux. In(L,R), Line Out (L,R), DC In. |
| Accessories | MIDI Cable (1.5m x 2), Audio Cable (Stereo;1.4m), 1-unit Bracket BRT-3 (for HX,HS and HE Electones; optional), 2-unit Bracket BRT-3D (for HX, HS and HE Electones; optional), Power Adapter PA-W10 (DC In 10V; 700mA - A; not included) |
| Dimentions(W x D x H) | 135 x 200 x 63.5mm (5.3" x 7.9" x 2.5") |
| Weight | 1.1kg (2.4 lbs.) |
For more information please refer to the Yamaha manual library. (Yamaha Manual library)
|
|
|
|
Sincerely yours James Cohen Israel.
|
